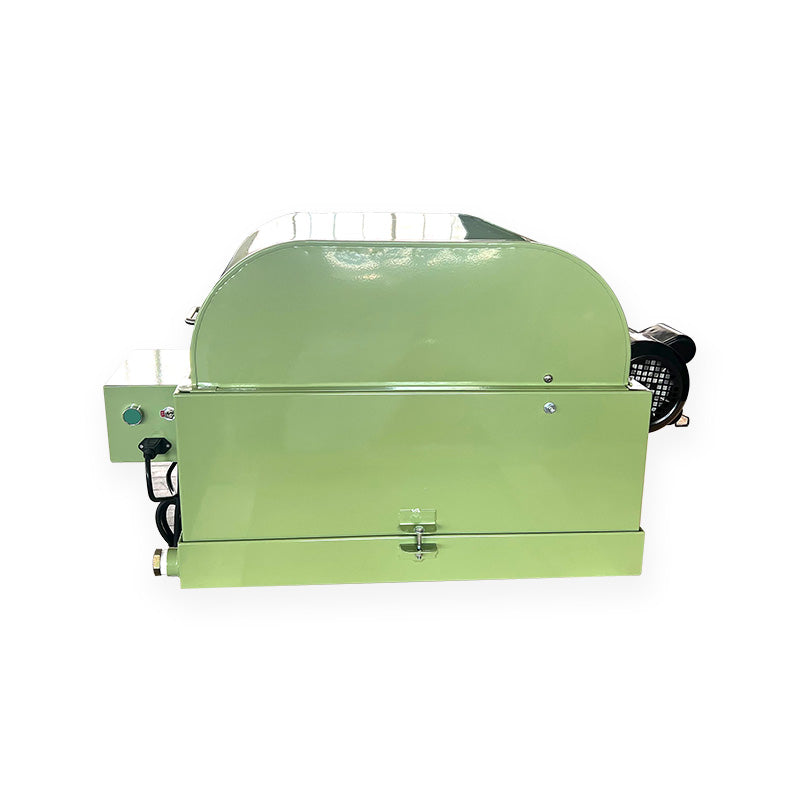

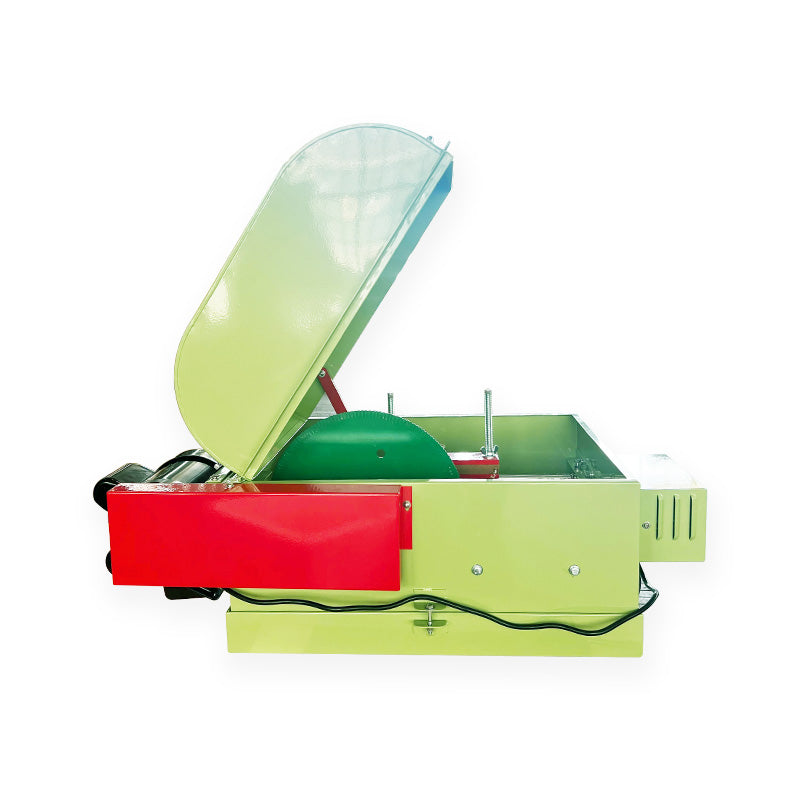

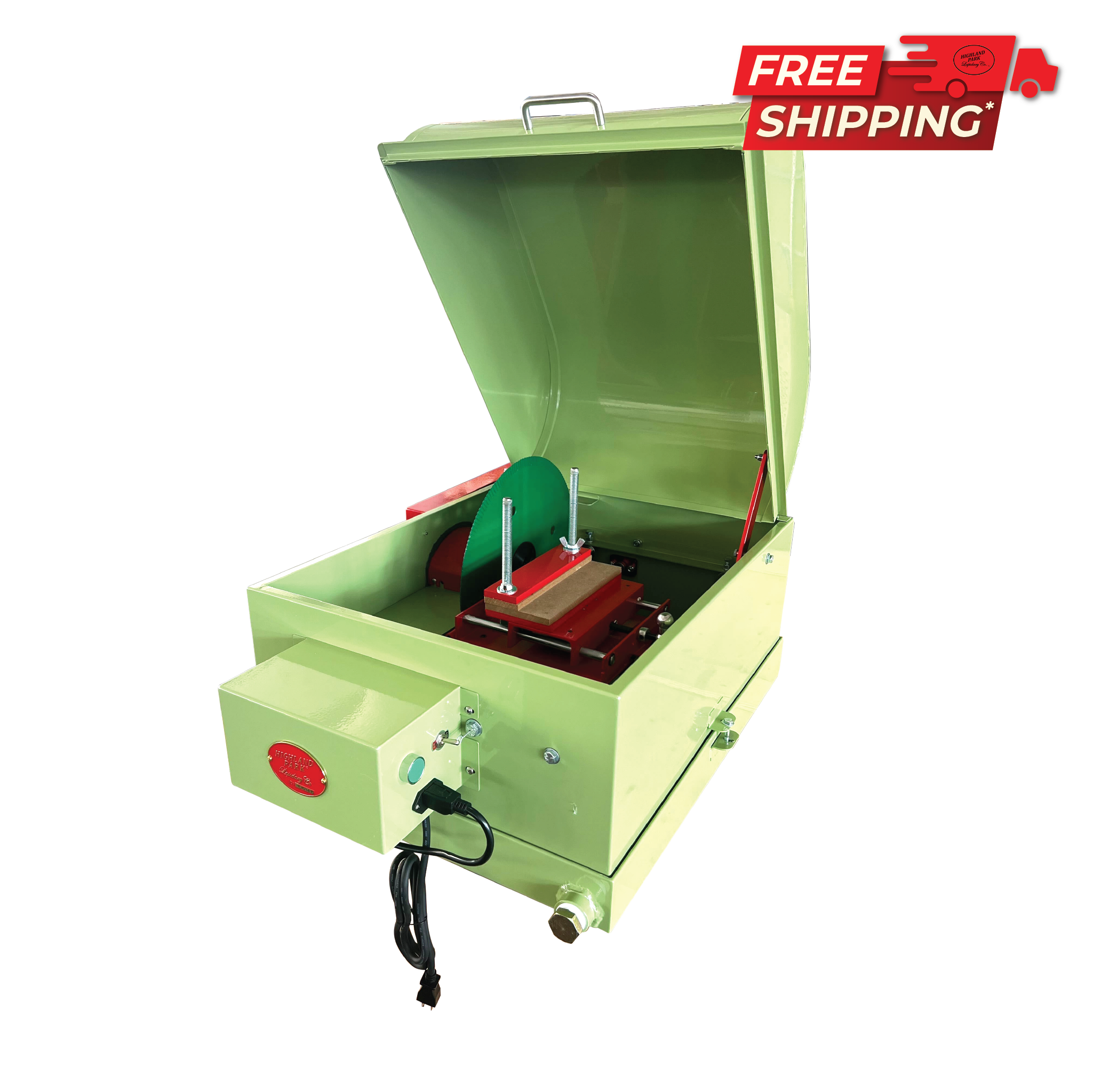

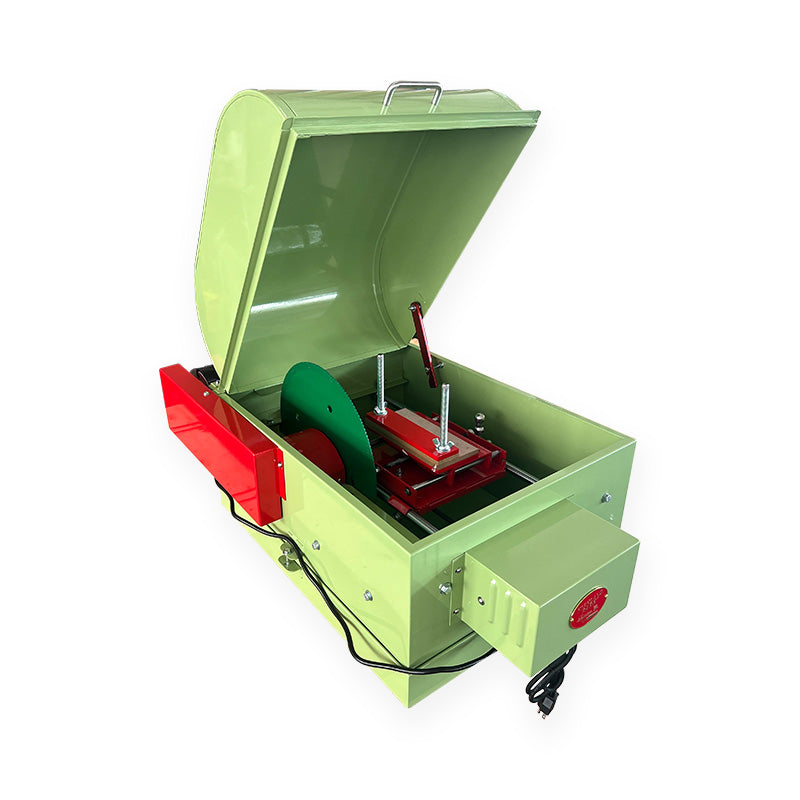

14 Inch HighTone Slab Saw 110V with Greenline blade

Highland Park LapidarySKU: Model HT14-110

Price:
$1,997
Stock:
In stock


Description

Model HT14 – 14 inches glass coldworking and equipment precision diamond lapidary slab saw with heavy-gauge, powder-coated steel tank, powerfeed, crossfeed vise, and 1/2 HP 110v motor. Greenline Agate Eater sintered diamond blade included.



Video

HT14 Overview

HT 12 Carriage Performance

HighTone Series Sheetmetal & Arbor Performance

What Makes A Good Arbor Bearing

Installing Your Motor and Adjusting the Belt

Specifications

HIGHLAND PARK 14 INCH SLAB SAW MODEL HT14 WITH POWERFEED AND CROSS-FEED VISE

WORKPIECE SIZE:

5-1/2 x 7 inch Cross Section

FEATURES AND SPECIFICATIONS:

  • ARBOR SHAFT – Tool steel machined to 3/4 inch bearing diameter. 5/8 inch diameter for blade arbor

  • BLADE FLANGES – Steel 3-inch outside diameter

  • BLADE - Greenline Agate Eater sintered diamond blade

  • SAFE START SYSTEM - Contactor control system reduces the risk of accidental startup

  • AUTOMATIC CUT-OFF SWITCH – Adjustable for length of cut

  • POWERFEED –  Approximate workpiece infeed rates 11¼ inches per hour, 3/16 inches per minute

  • SPLIT NUT DRIVE – Engages carriage with powerfeed screw. Released by a flip of the handle for quick carriage return

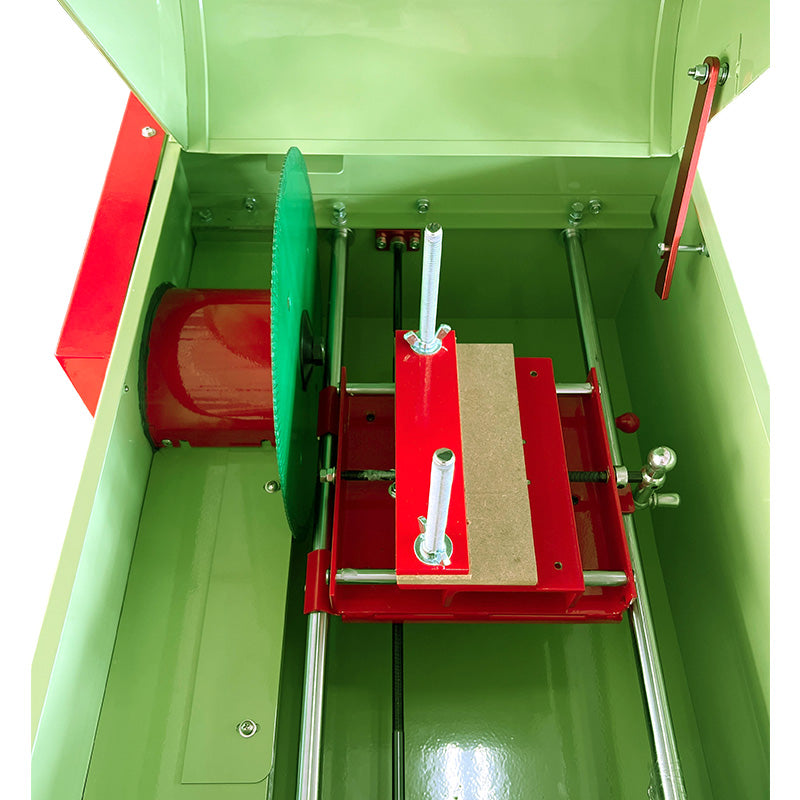

  • PRECISION CARRIAGE – Carriage rides on precision-ground hardened steel rails retained by adjustable precision roller bearings for smooth travel

  • CROSSFEED WAYS – 1/2 inch precision ground steel

  • SAW BOX – Welded 16 gauge steel. Inside dimensions 20 inches wide x 11¾ inches deep x 25½ inches long. Overall height with the hood closed – 20¼ inches

  • VISE – Steel vise jaws

‒ Maximum workable jaw opening 5½ x 7 inches

‒ Lateral travel of vise assembly 4¼ inches

  • V-BELT – Connects motor to the saw blade

  • MOTOR – 1/2 HP 110v motor

  • SHIPPING WEIGHT – 145 lbs

All Highland Park slab saws come ready to run from the factory precision aligned to a tolerance of +/-.03mm +/- .001 inch

FREE SHIPPING IN CONTINENTAL USA!

MORE INFORMATION

What to look for in a slab saw

How Highland Park Builds a Slab Saw

THE BEST SLAB SAW FOR THE SERIOUS HOBBYISTS

The Model HT14 is part of our HighTone series where the machine is designed to give the best cut out of all machines out there within its price range. It comes with an upgraded carriage that will allow you to have a smooth cutting experience. This can also accommodate the retrofit vise for more secure clamping of nodular agates and other materials. Simply put, this is the best machine available for the price!
