36 inch slab saw with powerfeed, cross-feed vise, Greenline blade and 3 HP 220V 60Hz motor

Highland Park LapidarySKU: Model 36-220

Price:
$10,997
Stock:
In stock


Description

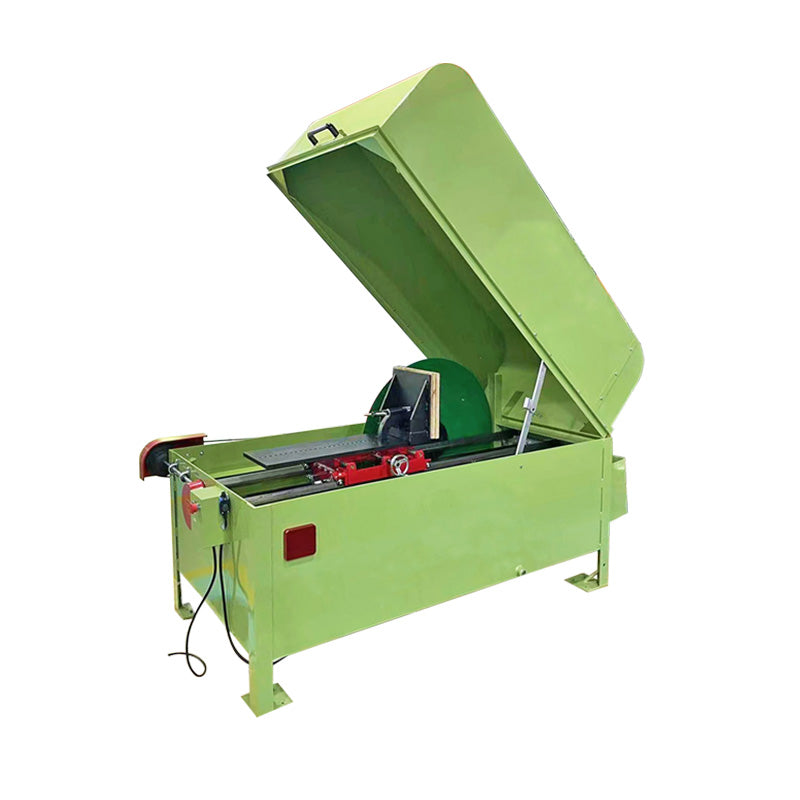

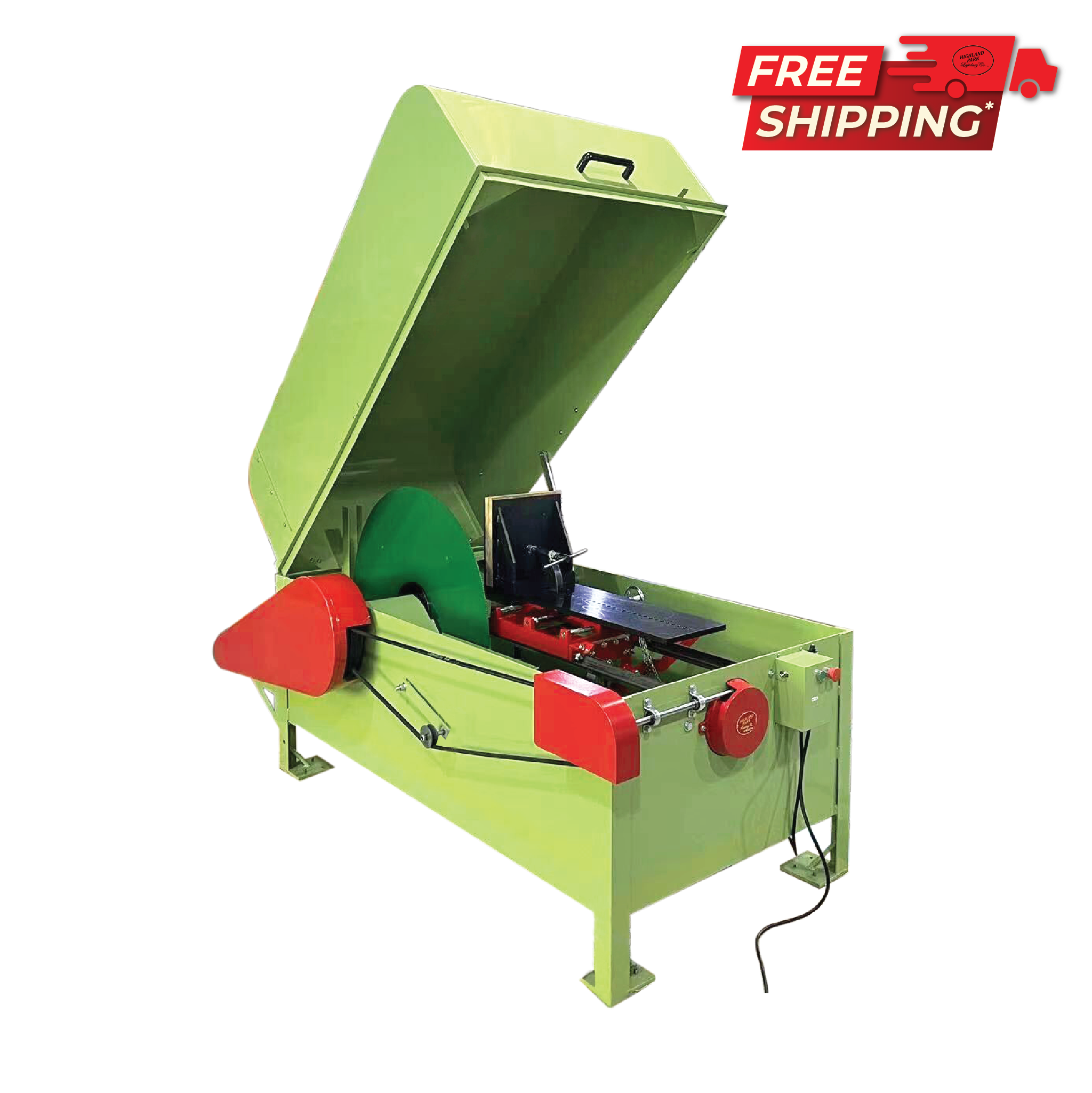

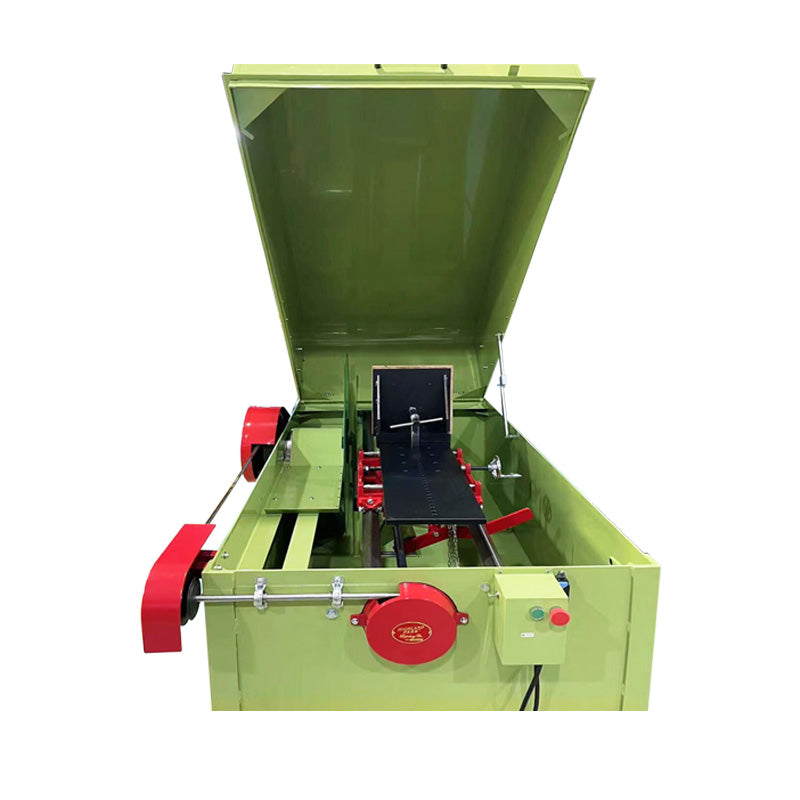

Model 36 lapidary diamond saw is a 36-inch precision cutting, glass coldworking and lapidary equipment slab saw with heavy-gauge, powder-coated steel tank, powerfeed, crossfeed vise and 3 HP 220v motor. Greenline Agate Eater diamond blade is included.

Specifications

HIGHLAND PARK 36 INCH SLAB SAW MODEL 36 WITH POWERFEED AND CROSS-FEED VISE

WORKPIECE SIZE:

UP to 13-1/2 inch X 26-inch cross-section

FEATURES AND SPECIFICATIONS:

ARBOR SHAFT – Cold-rolled steel machined to 1-3/8 inch diameter bearing. 1-inch diameter for diamond saw arbor

BLADE FLANGES – Steel 9-inch outside diameter

BLADE – Greenline Agate Eater segmented 36-inch blade included

AUTOMATIC CUT-OFF SWITCH – Adjustable for length of cut

POWERFEED – 3 speeds. Approximate workpiece infeed rates:

6¼ inches per hour

7½ inches per hour

9¼ inches per hour

SPLIT NUT DRIVE – Engages carriage with powerfeed screw. Released by a flip of the handle for a quick carriage return

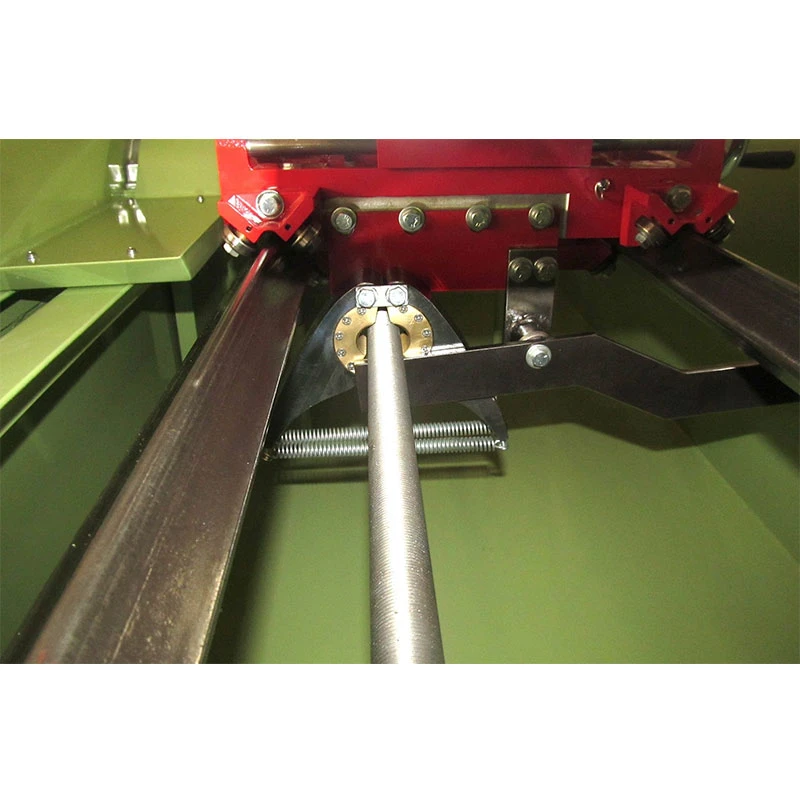

ROLLER BEARING CARRIAGE – Carriage rides on precision roller bearings instead of metal on metal bushings resulting in accurate operation that will never wear out.

WAYS – 1½ inch square cold rolled steel structural tubing

SAW BOX – Welded -1/4 inch (.236) thick steel. Inside dimensions 38" wide x 22" deep x 74" long. Overall height with the hood closed – 53 inches. Stainless drain cap and heavy-duty locking casters included.

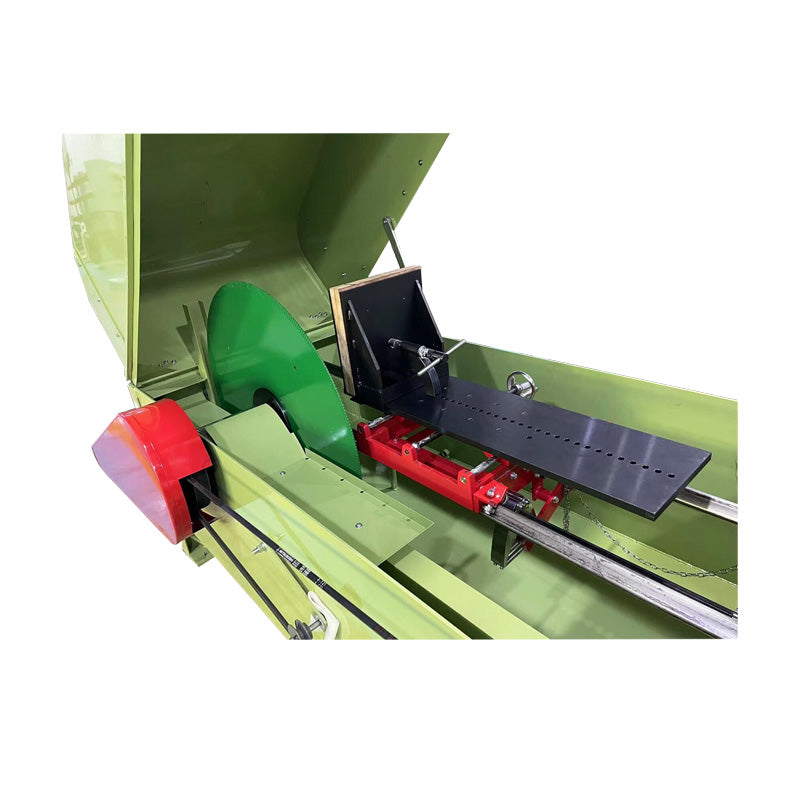

VISE – Cast iron jaws; 12" high x 12" long

‒  Maximum workable jaw opening 26 inches

‒  Lateral travel of vise assembly – 7 inches

V-BELTS – Connect the motor to the saw blade and powerfeed screw

MOTOR – 220 volts 3 H.P. TEFC with thermal protection and start and run capacitors

SHIPPING & WEIGHT – 1962 lbs. FREE CRATE INCLUDED and NO “Handling Charges" 105 x 53 x 58 in (10.50 pcf)

YOU WILL NEED TO ARRANGE AND PAY FOR A FORKLIFT TO UNLOAD THE CRATE WHEN IT ARRIVES. The carrier will be requested to call ahead to schedule a delivery appointment

All Highland Park slab saws come ready to run from the factory precision aligned to a tolerance of +/-.03mm +/- .001 inch

MORE INFORMATION

What to look for in a slab saw

How Highland Park Builds a Slab Saw

Owners Manual

AN INTERNATIONAL FAVORITE WITH ROCK PRODUCT MANUFACTURERS

The huge Model 36 is used by contract cutters and lapidary clubs to reduce rough to sizes that can be cut on smaller saws.  Built to last multiple lifetimes, it is the highest quality, most rugged saw in its class.
