14 Inch HighTone Drop Saw 110V with Greenline blade

Highland Park LapidarySKU: Model HTD14-110

Price:
$1,597
Stock:
Out Of Stock


Description

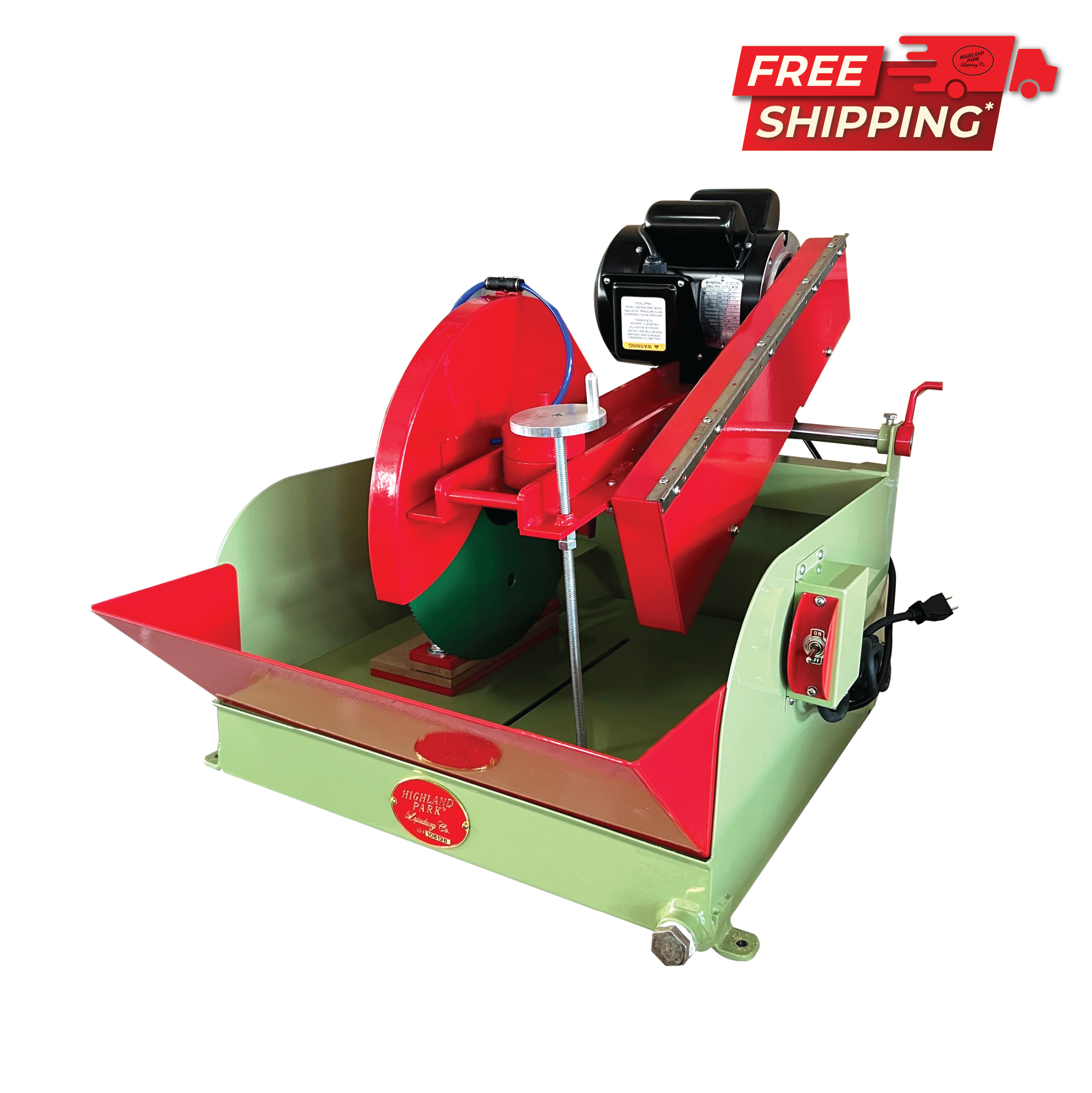

Model HTD14 lapidary diamond saw - 14 inches glass coldworking and lapidary equipment drop saw with heavy gauge powder-coated steel tank, adjustable gravity feed, crossfeed carriage, and 1/2 HP 110v motor. Greenline Agate Eater sintered diamond blade is included. (Pump not included)

Video

HDT14 Production Performance

HTD14 Overview

What Makes A Good Arbor Bearing

Specification

HIGHLAND PARK 14 INCH DROP SAW MODEL HTD14 WITH ADJUSTABLE GRAVITY FEED AND CROSS-FEED VISE

WORKPIECE SIZE:

5-1/2 x 7 inch Cross Section

FEATURES AND SPECIFICATIONS:

ARBOR SHAFT – Tool steel machined to 3/4 inch bearing diameter. 5/8 inch diameter for blade arbor

BLADE FLANGES – Steel 3-inch outside diameter

BLADE - Greenline Agate Eater sintered diamond blade

ADJUSTABLE GRAVITY FEED – Variable feed speed through use of balance arm and removable weights

COOLANT PUMP – Optional for recirculating cutting fluid (EC0010)

SAW BOX – Welded 14 gauge steel. Inside dimensions 20" wide x 11" deep x 20" long.

DRAIN PORTS – Two 3/4 inch ports in front and rear for easy cleaning

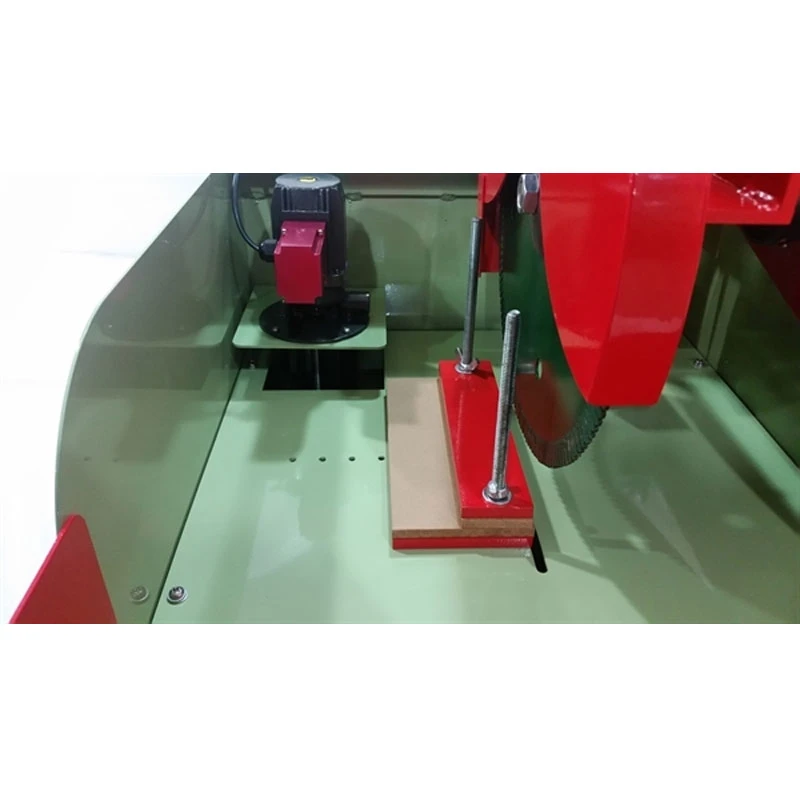

VISE – Steel vise jaws

‒ Maximum workable jaw opening 5½ x 7 inches

‒ Lateral travel of carriage assembly 5½ inches

‒ Six adjustable vise positions

V-BELT – Connects motor to saw blade

MOTOR – 110 volt 1/2 H.P. with thermal protection and start capacitor (220/230 volt 50/60 Hz available)

SHIPPING WEIGHT – 220 lbs FREE CRATE INCLUDED and NO “Handling Charges" 41 x 28 x 30 in (11.03 pcf)

FREE SHIPPING IN CONTINENTAL USA!
