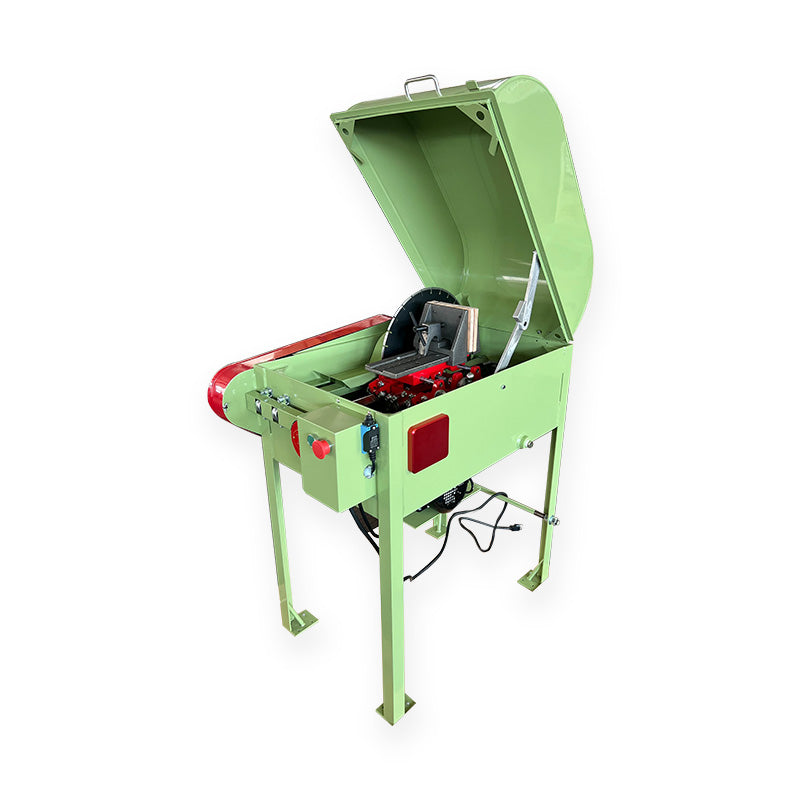

16 inch slab saw with HP Precision Blade, powerfeed, cross-feed vise and 3/4 HP 230V motor

Highland Park LapidarySKU: Model 16-230B

Price:
$3,167
Stock:
Out Of Stock


Description

Model 16 lapidary diamond saw is a 16-inch precision cutter, glass coldworking and lapidary equipment slab saw with heavy-gauge, powder-coated steel tank, powerfeed, crossfeed vise, and 3/4 horsepower 230v 50Hz motor. Includes Highland Park's best precision diamond blade.

This unit is not intended for USA or other countries with 60Hz electrical systems.



Videos



Specifications

HIGHLAND PARK 16 INCH SLAB SAW MODEL 16 WITH POWERFEED AND CROSS-FEED VISE

WORKPIECE SIZE:

6-1/8 x 6-1/4 inch Cross Section

FEATURES AND SPECIFICATIONS:

ARBOR SHAFT – Cold rolled steel machined to 1-inch bearing diameter. 5/8 inch diameter for diamond saw arbor

BLADE FLANGES – Aluminum 3¾ inch outside diameter

AUTOMATIC CUT-OFF SWITCH – Adjustable for length of cut

POWERFEED – 3 speeds. Approximate workpiece infeed rates:

13¾ inches per hour

17 inches per hour

22¾ inches per hour

SPLIT NUT DRIVE – Engages carriage with powerfeed screw. Released by a flip of the handle for quick carriage return

ROLLER BEARING CARRIAGE – Carriage rides on precision roller bearings instead of metal on metal bushings resulting in accurate operation that will never wear out.

WAYS – 1-inch square cold-rolled steel structural tubing

SAW BOX – Welded 7 gauge steel. Inside dimensions 19 ½ inches wide x 10¼ inches deep x 29¼ inches long. Overall height with the hood closed – 43 inches. Stainless drain cap and heavy-duty locking casters included

VISE – Cast iron jaws; 5 inches high x 6½ inches long

‒ Maximum workable jaw opening 5½ inches

‒ Lateral travel of vise assembly 3¾ inches

V-BELTS – Connect the motor to the saw blade and powerfeed screw

MOTOR – 3/4 HP 230v with thermal protection and start and run capacitors

POWER REQUIREMENTS -

OVERALL DIMENSIONS -

SHIPPING WEIGHT – 400 lbs. FREE CRATE INCLUDED and NO “Handling Charges”

All Highland Park slab saws come ready to run from the factory precision aligned to a tolerance of +/-.03mm +/- .001 inch

IDEAL SAW FOR THE SMALL LAPIDARY SHOP

The Model 16 is economical, occupies little floor space, yet with a 16-inch blade it can easily cut large geodes, agates, nodules, and pieces of petrified wood up to 5 ½ inches in their least dimension. This saw can take advantage of thinner kerf blades available in smaller diameters. It is an ideal saw for both the new hobbyist and the seasoned pro.
